Hydrocone crank gear and pinion

Movable Flange Assembly for Hydrocone (Crown Wheel & Pinion Gears) by Novincsm

The Movable Flange Assembly for Hydrocone (Crown Wheel and Pinion Gears) is a critical power‑transmission component in the hydraulic and mechanical drive system of hydrocone crushers. Designed and manufactured by Novincsm to meet rigorous industrial standards, this assembly ensures reliable torque transfer and smooth crusher operation.

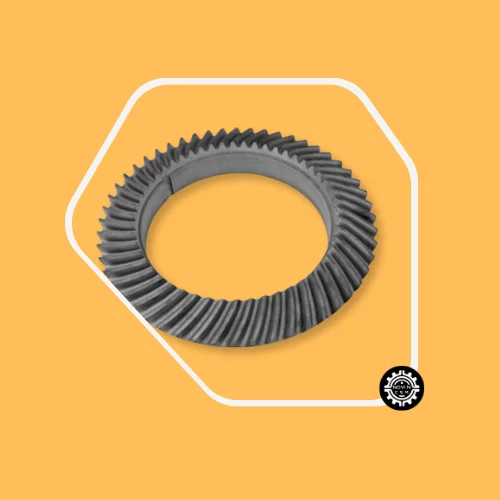

This assembly comprises a pinion gear (spiral bevel pinion) and a crown wheel gear (spiral bevel crown wheel), which work together to transmit torque from the electric motor through the housing shaft to the main shaft of the hydrocone crusher. This power transfer generates the eccentric movement required for effective crushing of hard mineral rocks. Engineered with precision, the movable flange assembly also absorbs vibration and enhances torque accuracy, making it ideal for high‑capacity sand and aggregate production lines.

It is commonly used with 36‑inch hydrocone models (e.g., 36‑2, 36‑3, 36‑4) and is typically fabricated from premium bronze or alloy steel. The assembly serves as a robust replacement for older drive systems under heavy‑load conditions.

Key Features

• Durable Construction:
  The pinion gear is manufactured from high‑hardness alloy steel or bronze, while the crown wheel gear is made from cast iron or low‑carbon steel. This material selection delivers excellent resistance to wear, impact, and mechanical fatigue.

• Optimal Performance:
  Precision gear ratios—with the crown wheel having more teeth than the pinion—ensure efficient torque amplification. An immersed lubrication system minimizes friction and maximizes overall drivetrain efficiency.

• Ease of Maintenance:
  Modular design enables rapid component replacement without prolonged production downtime. Fully compatible with standard hydrocone lubrication systems.

• Flexibility & Customization:
  Suitable for various hydrocone models, with customization options based on required capacity and feed rock type (e.g., granite, basalt, iron ore).

• Wide Application:
  Commonly applied in mining, road construction, and building material production industries where robust power transmission for hard rock crushing is essential.

Advantages

• Extended Service Life:
  Precise torque transmission reduces wear on the shaft and associated drivetrain components, lowering maintenance costs.

• Enhanced Crusher Performance:
  Designed to endure high loads and elevated operating temperatures, improving hydrocone reliability in heavy‑duty conditions.

• Full System Compatibility:
  Seamless integration with other hydrocone components such as MO40 shaft, bronze bushings, and top shell for unified performance.

• Comprehensive Technical Support:
  Novincsm provides expert consultation for optimal gear ratio selection and spare parts supply.

Manufacturer Information

Novincsm, with years of experience in manufacturing spare parts for hydrocone crushers, produces this movable flange assembly using superior raw materials (premium bronze and alloy steel) and adheres to stringent industrial quality standards. For detailed technical specifications, exact weight (typically between 50–100 kg depending on model), or custom fabrication options, contact our factory specialists.

Purchase & Technical Consultation

For up‑to‑date pricing, inventory availability, and professional technical consultation, contact Novincsm to ensure the correct part is supplied for your mining operation or project requirements.
