In this section of the Novin Masesaz store, you can view and select a complete collection of industrial screen parts. From screen mesh, springs, chassis and bearings to vibrating motors and screen tires, all are offered with high quality and competitive prices. All products have a guarantee of authenticity and are available to buyers with fast shipping throughout the country.
| Part name | Material | Dimensions / numerical characteristic | Approximate weight | Useful life (average) | Application | Application |
|---|---|---|---|---|---|---|
| Screen shaft | Alloy steel CK45 or ST52 | Diameter 70–100 mm / Length 100–150 cm | 25–40 kg | 3 to 5 years | Transfer of force from the rudder to the anchor | It must be heated and balanced to prevent vibration failure. |

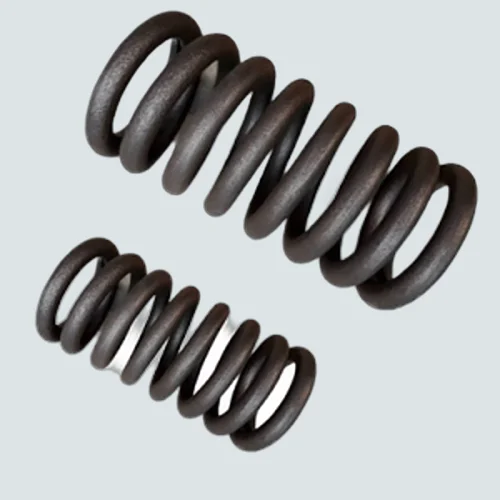

| Spring sieve | CK75 or CK80 spring coil | Height 20–35 cm / Wire diameter 16–20 mm | 3–5 kg up to 3 years | 2 to 3 years | Absorbs vibration and reduces pressure on the body | Symmetrical installation and greasing of spring connections are essential. |
| Guardan Sarand | Durable steel with cross connection | Shaft diameter 40–60 mm / length 40–80 cm | 6–8 kg | 2 to 4 years | Torque transmission from motor to shaft | It must have regular lubrication and precise alignment. |

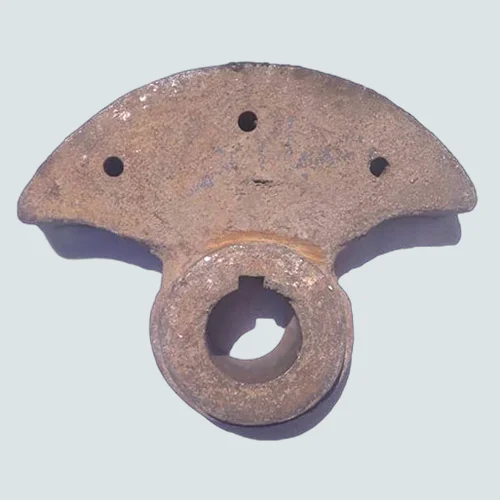

| Screen anchor (balance weight) | Balanced steel or cast iron | Each anchor weighs 6–10 kg. | 8 kg | 4 to 6 years | Creating controlled vibration | Accurate weight adjustment is essential to prevent excess vibration. |

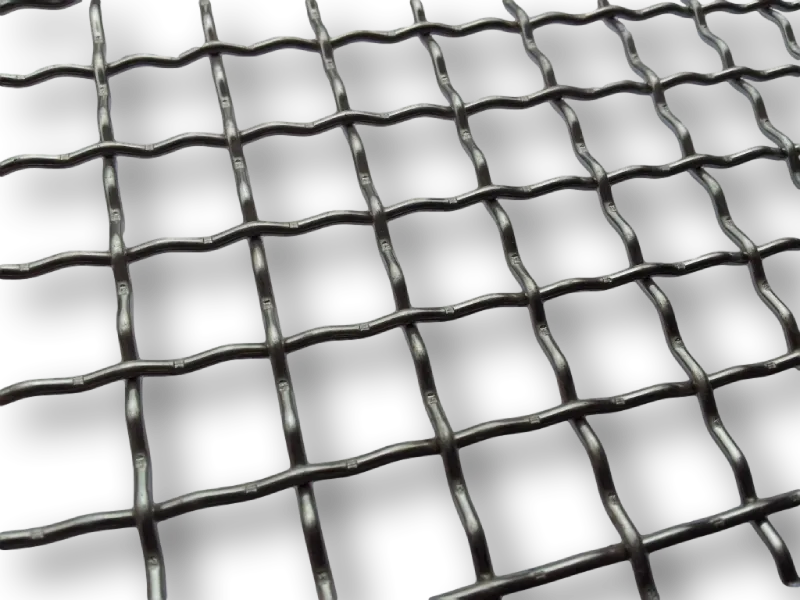

| Tabriz steel mesh | Manganese steel or wear-resistant steel | Spring 5–50 mm / Wire thickness 3–8 mm | 10–20 kg/m2 | 10–20 kg/m2 | Separation of materials based on grain size | High resistance to wear / selection of springs appropriate to the materials. |
| Screen bearing | Hardened steel (SKF or FAG) | Size 22218 to 22224 / permissible speed 1500–2000 rpm | 2–3 kg | 3 to 5 years | Shaft maintenance and lubrication | It is dust-proof and requires periodic greasing. |
| Vibration motor | Cast iron or aluminum with copper winding | Power 0.75–3 kW / speed 1500–3000 rpm / 380V | 20–35 kg | 5 to 7 years | Creating uniform vibration in the sieve | It is essential to select power based on the screen capacity. |
| Chassis screen | Industrial profile or reinforced beam | Depending on the capacity of the device | About 80–120 kg | 8 to 10 years | The main sieve holder and skeleton | It must be level and resistant to vibration. |
| Rubber screen | Anti-wear industrial rubber | Thickness 10–20 mm | 1–2 kg/m | 1 to 2 years | Preventing the transmission of vibration and sound | It must be resistant to heat and oil. |
| Screen Bearing | Hardened alloy steel | Size 22218 or 22320 / Double row spherical type | 2–3 kg | 3 to 5 years | Smooth rotation of the main axis | Using a reputable brand and greasing is essential. |
Screen chassis: The main skeleton of the device on which all parts are mounted.
Shaft (main axis): Transmits rotational force from the motor or cardan to the anchor.
Screen mesh (steel, stainless steel, polyurethane, manganese): The act of separating and grading materials based on size.
Anchor (balance weight): Creates controlled and balanced vibration in the device.
Screen body and frame: Supports the mesh and internal parts against impact and vibration.
Vibration motor (electrovibrator): Source of vibration to move materials on the mesh.
Cardan: Transfers torque from the motor or pulley to the screen shaft.
Screen coupling: Secure connection between the shaft and the vibration motor with shock absorption.
Pulley and belt: Transfers rotation from the motor to the moving parts of the device.
Screen spring: Absorbs vibrations and reduces pressure on the chassis of the machine.
Screen rubber: Prevents the transmission of vibration and sound to the body.
Rubber shock absorber: Reduces shocks caused by sudden movements.
Anti-vibration washer: Keeps the connections stable against continuous vibrations.
Screen bearing: Supports the shaft and helps it rotate smoothly.
Screen bearing: Reduces friction between the shaft and the bearing for smoother movement.
Bearing base: Where the bearing is installed on the chassis and adjusts the rotation angle.
Felt cap and bowl: Prevents dust from entering and maintains grease in the bearing.
Screen connection bolts and nuts: Secures the screen to the screen frame.
Screen clamp: Holds the edges of the screen to prevent slipping.
Threaded screen and retaining clip: Quick and replaceable screen installation.
Screen side plate: Protects the inner walls from wear.
Anti-wear body coating: Increases the useful life of the chassis and body of the machine.
Industrial and anti-corrosion paint: Prevents rust and decay of metal parts.
Novin Masesasaz is a specialized supplier of equipment and parts for sand and aggregate lines. With more than 15 years of continuous activity in the industry, we have extensive experience in supplying parts for various factories and projects. Our team consists of experienced engineers and specialists who work on the design and production of standard parts and always control the quality of construction. To date, we have cooperated with more than 200 successful factories and projects throughout Iran and have met a large part of the needs of the country’s sand making industry.
The main goal of Novin Masesasaz is to provide fully professional and committed services to customers, including technical advice, quick response and support during the use of equipment. We always seek to establish long-term and reliable relationships with customers and always prioritize quality and accuracy.
We manufacture all parts according to industrial standards and offer them with a valid warranty.
Before purchasing, we are with you to select the best part for the machine and line capacity.
A complete set of screen parts including mesh, spring, shaft, bearing and vibrating motor is always available.
We ship parts with proper and safe packaging throughout the country so that they can be delivered without problems.
Our experience shows that more than 200 sand making factories in Iran use our parts.
We announce transparent prices so that you can make a safe and economical choice for your production line.
Buying from Novin Sand Maker means receiving quality parts, real support services and a professional and reliable experience.
The lifespan of these components is directly dependent on the lubrication schedule and oil quality. Using the right grease and oil according to the manufacturer’s standard, along with regularly checking bearing temperatures to prevent overheating, is the best way to maintain the health of the crankshaft and bearings in the long term.
To order parts, you can contact us by phone, messenger, or via our contact form on the Novin Sand Maker website. Our experts will guide you in selecting and purchasing the right part.
Yes, all screen parts provided by Novin Masesasaz have a quality and authenticity guarantee. In case of any problem, our support team is ready to provide you with after-sales service.
Various factors such as the type and hardness of the input material, the operating conditions of the machine, the quality of the parts, and regular maintenance affect the useful life of the screen parts. Using quality parts and following maintenance instructions can increase the useful life of the machine.
