Three-tier screen 1*6

Three-tier screen piece 1*6 from Novin Masesaza

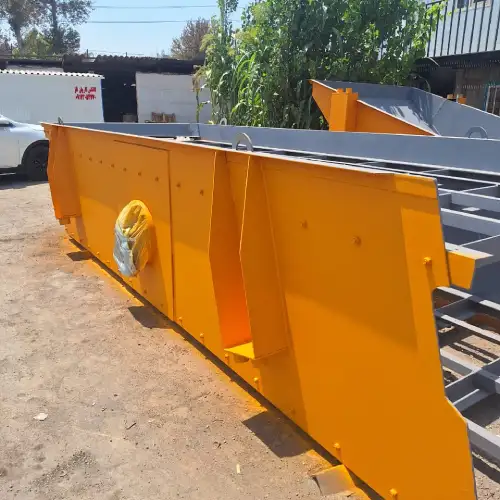

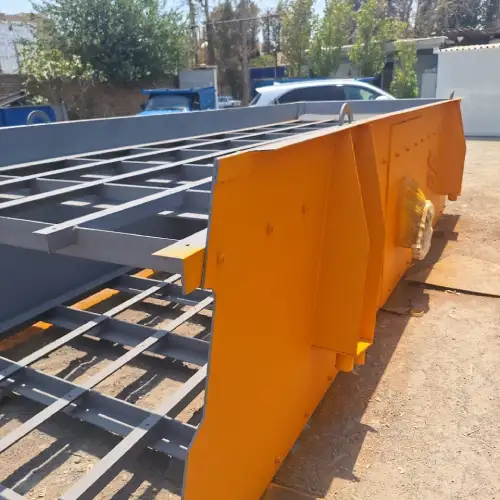

The 1×6 three-tier screen is one of the advanced and widely used equipment of Novin Masesaz Company, which is designed and manufactured for grading and separating minerals in sand and gravel production lines, stone quarries and construction materials processing. This screen, with dimensions of 1 meter wide and 6 meters long, has three meshing floors (the first floor for coarse grains, the second floor for medium grains and the third floor for fine grains) and classifies materials based on grain size (from 0.5 to 50 mm) with mechanical vibrations. The 1×6 three-tier screen of Novin Masesaz is built according to industrial standards with a focus on high accuracy, wear resistance and efficiency in harsh mining conditions and its production capacity is about 120-180 tons per hour, which is suitable for medium to large mines. This model with multi-stage separation capability is an ideal alternative to single or double-tier screens in complex production lines.

Key Features:

• Durable structure: The body is made of wear-resistant steel sheet (double thickness 8-12 mm) and wear-resistant polyurethane or steel meshes, which can withstand heavy loads and hard minerals such as granite and iron ore.
• Efficient performance: Vibration system with two vibrating electromotors (power 7.5-10 kW) to create linear or rotational vibrations, precise grain separation and increase granulation efficiency.
• Easy maintenance: Easy access to meshes and bearings for quick replacement; equipped with anti-vibration springs to reduce noise and vibrations.
• Flexibility: Ability to adjust meshes for different grain sizes (output 0-5, 5-20, 20-50 mm); three-tier models with adjustable slope.
• Widely used: in mining industries, concrete, asphalt and construction materials production for separating sand, gravel and rubble after crushing.

Advantages:

• Increase production line efficiency with precise multi-stage separation and reduce waste, saving time and energy.
• High durability in harsh mining conditions, with a long service life of the meshes (up to 6-12 months depending on the material).
• Compatibility with other modern sand making equipment such as grizzly feeders, jaw crushers and conveyors for integrated operation.
• Full technical support from Novin Masesaz, including installation, repair, and supply of spare parts such as mesh, springs, and bearings.

Manufacturer: Novin Masesaz Company, with years of experience in manufacturing mining equipment and vibrating screens, designs and supplies this model with global standards and in accordance with customer needs. The weight of the machine is about 6-8 tons and for technical details, exact capacity or customization, it is recommended to contact the sales team.

Purchase and Consulting: To receive a quote, custom order, or technical consultation, contact Novin Sand Maker to provide a product tailored to the needs of your mine or project.
