| Key Feature | Brief Description |
|---|---|
| SKF Interchangeable Bearing | European replaceable bearing – 25,000+ hours lifespan, reduces maintenance cost by 50% |
| ST37 Stainless Tube | Diameter 60–89 mm, thickness 3–4 mm – resistant to hard rock abrasion (Mohs 7–9) |
| PU Rubber End Cap | Dust- and water-resistant – IP65 rating, 3× longer lifespan than standard caps |
| Iranian CNC Manufacturing | Tolerance accuracy ±0.1 mm – 30% cheaper than competitors (e.g., Niroll, Iran Roller) |
| Load Capacity | Up to 500 kg per roller – suitable for conveyors 200–500 tons/hour |
| Warranty & Durability | 12-month warranty + 2–3 years lifespan in mining applications – outperforms pressed rollers |
Initial consultation and information exchange
Initial consultation and information exchange
Place an order
Product loading and shipping
| Specification | Full Details |
|---|---|
| Product Name | Interchangeable Bearing Roller for Conveyor |
| Standard Diameter | 60, 76, 89, 108, 127, 159, 193 mm (customizable up to 220 mm) |
| Roller Length | 200–2400 mm (standard: 500–1500 mm) |
| Tube Material | ST37/ST52 steel (3–5 mm thickness) with epoxy anti-rust coating (100 μm). |
| Bearing Type | Interchangeable SKF/FAG bearings (6000/6200 series), grease-sealed, IP55. |
| End Cap & Seal | PU rubber or PTFE, dust- and water-resistant (IP65), replaceable without welding. |
| Connection Type | CO2 welded or pressed (optional) – ST52 shaft diameter 17–25 mm. |
| Static Load Capacity | 200–500 kg per roller (depending on diameter and length). |
| Rotation Speed | Up to 300 rpm (suitable for belt speed 2–3 m/s). |
| Operating Temperature | -20°C to +80°C (HR model up to +120°C). |
| Bearing Service Life | 20,000–30,000 hours (30% longer than competitor bearings such as Sahand). |
| Approx. Weight | 5–25 kg (example: 76 mm diameter, 1000 mm length = 12 kg). |
| Production Standard | ISO 15306 / DIN 2391 – CNC 5-axis manufacturing for high precision. |
| Warranty | 12 months full replacement (in case of technical defect) + 5 years after-sales service. |
| Availability & Lead Time | All sizes in stock; custom orders fulfilled in 7–10 days. |
| Approximate Price (2025) | From 1.2 million IRR (60 mm diameter) to 4.5 million IRR (159 mm diameter) – competitive with Delta and Cararoll. |

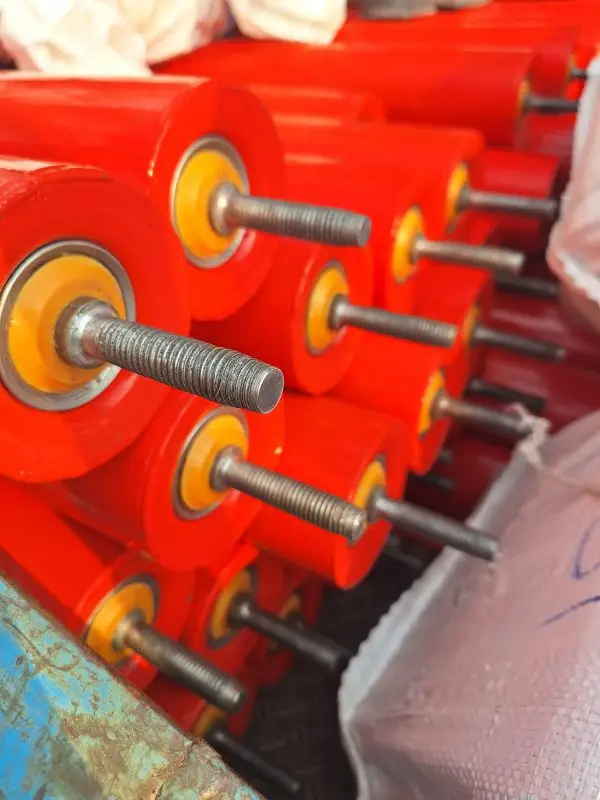

The Interchangeable Bearing Roller is a high-quality roller designed for conveyor systems, offering significantly longer service life compared to standard pressed rollers. This roller includes protective components to prevent dust and debris ingress, ensuring smooth operation and enhanced durability.
The interchangeable bearing roller can be manufactured with either used or new bearings, or even higher-quality bearings based on customer requirements. Using higher-grade bearings further increases service life and performance, though it comes at a higher cost compared to standard rollers.
Materials: Available in steel, galvanized steel, and stainless steel.
Types: Pressed, interchangeable, shock-absorbing, or PTFE-coated.
Dimensions: Produced in various diameters and lengths to match conveyor system requirements.
Standard Diameters: 6 mm, 7 mm, and 9 mm (for light, medium, or heavy-duty applications).
Bearings: Bearings are installed on both sides of the roller to provide free rotation, which allows the belt to move smoothly. In interchangeable bearing rollers, the end caps are not welded to the tube, enabling easy bearing replacement in case of failure.
Function: The roller supports the bulk weight of the conveyed material, reducing stress and damage to the conveyor belt. It plays a key role in maintaining conveyor performance and durability.
Shaft Types: Shafts may be threaded or slotted depending on the design.
Wide range of materials: iron, galvanized steel, stainless steel.
Various roller types: pressed, interchangeable, shock-absorbing.
Multiple shaft and bearing options: new or used bearings, threaded or slotted shafts.
Designed to reduce wear and prolong conveyor belt life.
Easy maintenance and bearing replacement without welding.
An interchangeable bearing roller features bearings that can be replaced without damaging the tube. Its service life is 2–3 times longer than pressed rollers, and maintenance costs are up to 50% lower.
SKF bearings can operate continuously for 25,000–30,000 hours, approximately 30% longer than standard Chinese bearings used in some competitors’ rollers.
For heavy-duty applications like iron ore, a 89–108 mm diameter roller with interchangeable bearings is recommended. It supports up to 400 kg load and offers high wear resistance against silica abrasion.
Welded CO2 rollers: Stronger, suitable for heavy loads up to 500 kg.
Pressed rollers: More economical, suitable for light-duty conveyor lines.
Both types are available from Novin CSM.
Standard model: Up to +80°C
HR model: Up to +120°C, ideal for high-temperature environments such as kilns and cement plants.
